Solution Introduction

Overview of Communication Solution

The HSafe communication solution is built upon a network of strategically placed Anchor devices, forming a dedicated wireless network.

The system ensures real-time data transmission, low latency, and stable operation even in the harshest industrial environments.

Manufacturing Plant

Construction Site

Obstructed Areas

Flexible Expansion

Industrial Standard

Low Latency • 24/7 Operation • Heat & Interference Resistant

System Communication Architecture

Device
UWB signal-emitting Tag attached to the object to be monitored.
Anchor System
Master/Slave network that receives signals and calculates locations.
Central Server
Big Data storage, behavior analysis, and logic processing.
Web/App
Intuitive interface for displaying alerts and generating reports.

Anchor Devices

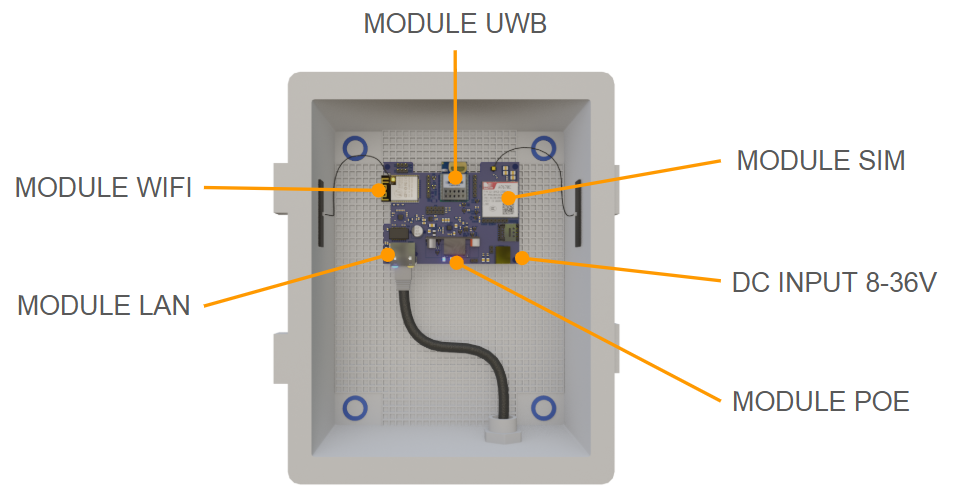

Anchor Master
Central Device

Anchor Master

Master anchors connect with each other to form the backbone of the communication network. Slave anchors and tags send information to the master anchors. The master anchors receive and forward data to the server and vice versa.

  • Fixed installation in the factory at open, unobstructed locations
  • Flexible internet connection via 4G, WiFi, or LAN port
  • Uses UWB for positioning and packet transmission within the internal network
  • Central preprocessing and data transmission to cloud server
  • Receives information from cloud server and sends to end devices
  • Supports multiple protocols and various communication ports
  • Powered by 12V from solar battery or internal power source
Anchor Slave
Satellite Device

Anchor Slave

Expands coverage area and improves positioning accuracy in signal-shadowed zones. Acts as an intermediate connection point or bridge for packet transmission and serves as a reference point for device positioning in the system.

  • Fixed installation in the factory at open, unobstructed locations
  • Uses UWB for communication and positioning
  • Wireless transmission and reception with Anchor Master
  • Transmits and receives packets with end devices
  • Supports multiple protocols and various communication ports
  • Powered by 12V from solar battery or internal power source

VALUE DELIVERED

Optimized communication infrastructure solution for businesses.

Shared Infrastructure

Uses a single platform to simultaneously address multiple IoT device connectivity and positioning needs.

Fully Wireless

Minimizes cabling, reduces cable breakage risks, and accelerates on-site installation.

Flexible Expansion

Open architecture allows adding more Anchors or upgrading features without changing the original hardware.
