Anchor

The Anchor is a fixed infrastructure device in the HSafe Real-Time Location System (RTLS).

  • Receives UWB signals from Tags
  • Calculates real-time positioning
  • Transmits data to the Server via Wi-Fi / 4G
  • Serves as the positioning infrastructure on construction sites

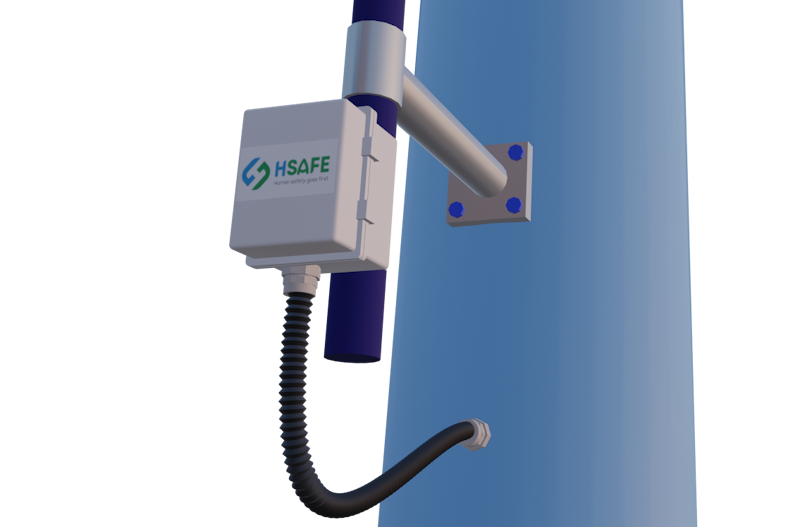

Anchor Structure

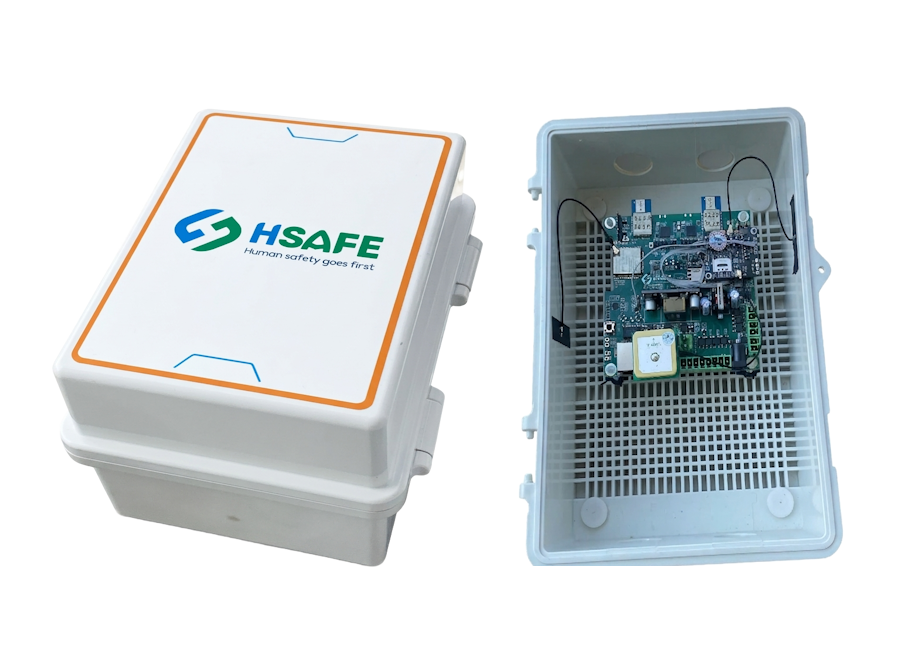

Product Overview

HSafe Anchors feature a robust design optimized for harsh construction environments. The housing is made of die-cast aluminum alloy or high-grade industrial plastic with an electrostatic powder-coated surface for corrosion resistance.

  • Compact size (indoor model) or more rugged (outdoor model)
  • Integrated UWB antennas — omnidirectional or directional depending on the model
  • Clear connection ports: Ethernet (PoE), DC power, external antenna (if applicable)
  • Easy-to-view status LEDs (Power, Network, UWB)

Technical Specifications

Parameter Value / Description
Positioning Technology Ultra-Wideband (UWB) – IEEE 802.15.4
Positioning Accuracy ±10 ~ 30 cm (depending on environment and deployment)
UWB Frequency Band 3.1 – 10.6 GHz (channel depends on regional regulations)
Backhaul Connectivity 4G LTE / WiFi 2.4GHz / Ethernet (PoE supported)
Power Supply DC 12V or PoE (IEEE 802.3af/at)
UWB Range Up to 250 meters (depending on deployment and obstacles)
Operating Temperature -20°C ~ +60°C (industrial version: -40°C ~ +70°C)
Protection Rating IP65 (dust and water spray resistant) / IP67 depending on model
Housing Material Die-cast aluminum alloy or high-grade engineering plastic
Dimensions (approx.) Indoor model: ≈ 200 × 200 × 45 mm
Outdoor model: ≈ 280 × 185 × 80 mm
Weight 500 – 1,200 grams (depending on model)
Positioning Method TDoA / TWR (Time Difference of Arrival / Two-Way Ranging)

* Specifications may vary slightly depending on the version. Please contact us for the latest datasheet.

Packaging & Accessories

  • 1 × HSafe Anchor
  • 1 × DC 12V Power Adapter (if not using PoE)
  • 1 × CAT6 Ethernet Cable (2m)
  • 1 × Mounting Bracket & Screws for wall/ceiling
  • 1 × Quick Installation & Configuration Guide

Package Dimensions:

≈ 35 × 25 × 15 cm (indoor model)
≈ 40 × 30 × 20 cm (outdoor model)

Package Weight:

1.2 – 2.5 kg

Installation Guide

1. Recommended Installation Locations

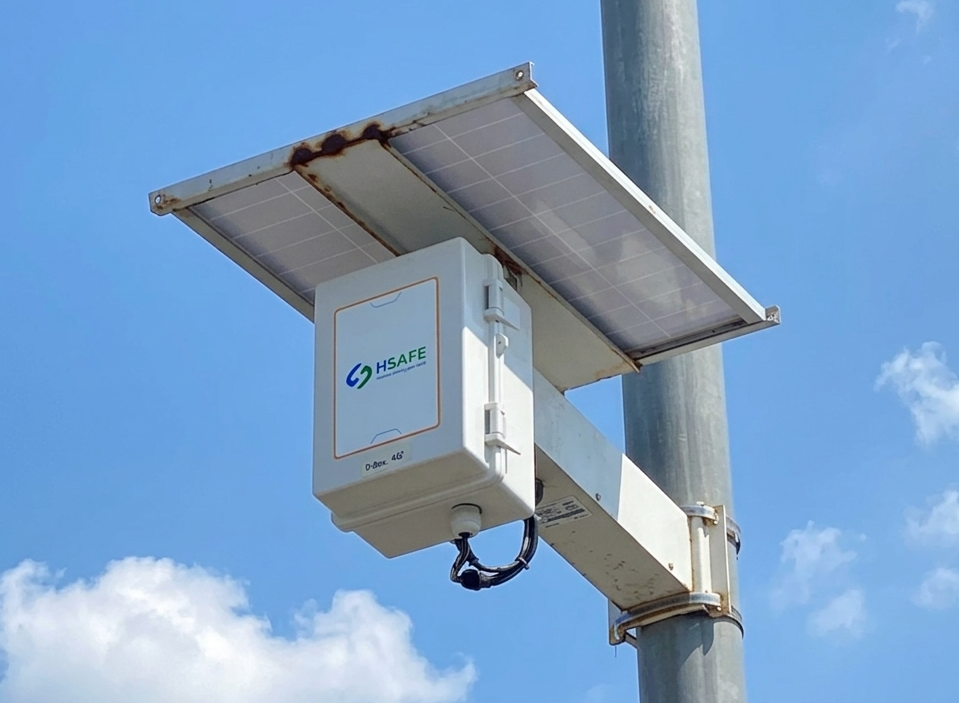

  • Install at elevated positions (2.5m – 5m above ground) for clear line-of-sight with HSafe helmets/tags.
  • Distribute Anchors evenly around the monitoring area — avoid placing them in a straight line.
  • Vary the mounting height between Anchors to improve Z-axis (height) accuracy.
  • Avoid placing near large metal surfaces, heavy vibrating machinery, or strong electromagnetic interference sources.
2. Physical Installation
  • Use the included mounting bracket to securely fix the Anchor to walls, poles, or ceilings with screws.
  • Mount the Anchor vertically (antenna facing downward or as recommended by the model).
  • Connect the Ethernet cable (PoE) or DC 12V power supply.
  • Power on and check the status LEDs.

Configuration Guide

Connect the Anchor via Ethernet (PoE) or WiFi/4G. The Anchor will automatically obtain an IP address (DHCP) or use a static IP.

Access the HSafe Server admin interface → Devices → Add New Anchor → Enter MAC address and physical coordinates (X, Y, Z) of the Anchor.

Use the calibration tool on the Server to accurately determine Anchor positions. Test UWB connectivity by moving an HSafe helmet/tag within the area and checking real-time location data.

If you have any questions, please contact us for support.
