Safety Helmet Device

A wearable device for workers that monitors health status and real-time location.

  • Accelerometer sensor
  • Biometric sensors
  • Environmental sensors (toxic gas, etc.)
  • Transmits data to Anchors via UWB

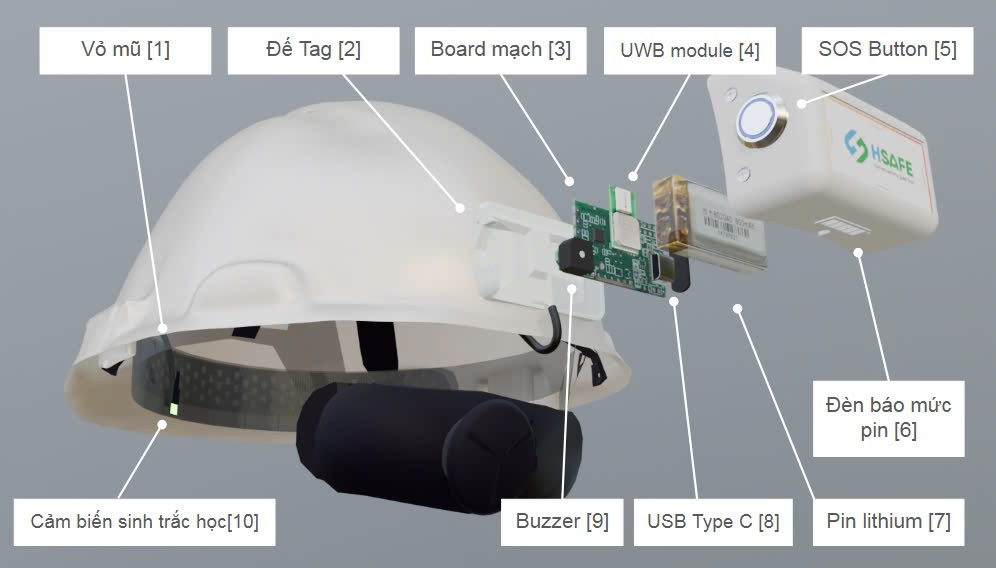

HSafe Device Structure

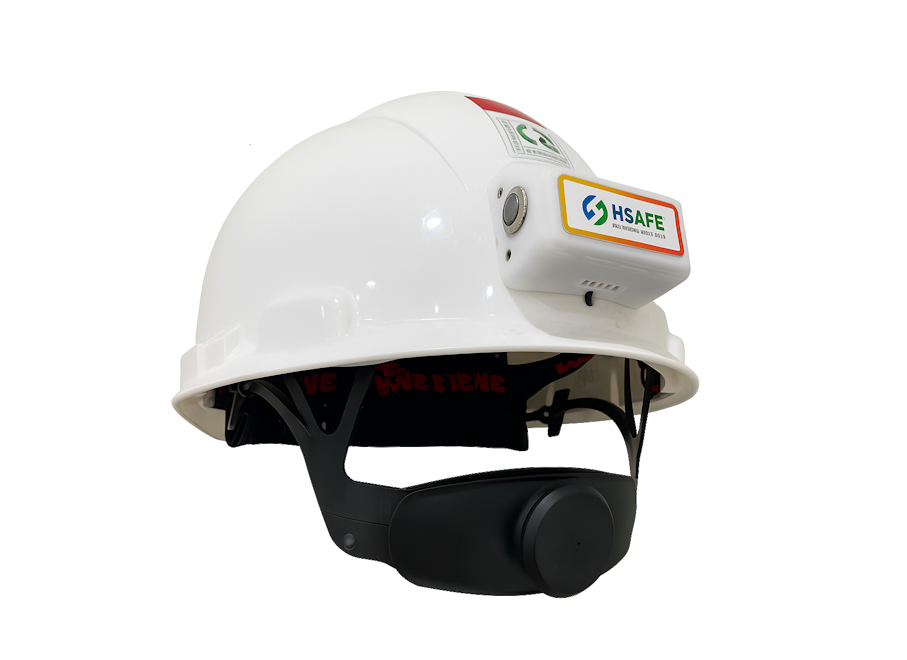

Product Overview

The HSafe safety helmet is designed to meet occupational safety standards while integrating advanced technology. The helmet shell is durable, lightweight, well-ventilated, and features soft padding for comfortable long-term wear by workers.

  • Modern design with bright colors for easy identification
  • Integrated UWB module and smart sensors
  • Easily accessible emergency SOS button
  • LED indicators for battery status and alerts
  • Strong, adjustable chin strap
  • Easy to disassemble and replace during maintenance

Technical Specifications

Parameter Value / Description
Positioning Technology Ultra-Wideband (UWB) – IEEE 802.15.4
Positioning Accuracy ±10 ~ 30 cm (depending on environment and deployment)
UWB Frequency Band 3.1 – 10.6 GHz (channel depends on regional regulations)
Sensors Accelerometer, pressure sensor, biometric sensors
Power Supply 3.7V 500mAh lithium battery
UWB Range Up to 250 meters (depending on deployment and obstacles)
Operating Temperature -20°C ~ +60°C (industrial version: -40°C ~ +70°C)
Protection Rating IP65 (dust and water spray resistant)
Housing Material High-grade engineering plastic
Dimensions (approx.) ≈ 55 × 35 × 20 mm
Weight ≈ 100 grams
Positioning Method TDoA / TWR / GPS (Time Difference of Arrival / Two-Way Ranging / GPS)

* Specifications may vary slightly depending on the version. Please contact us for the latest datasheet.

Packaging & Accessories

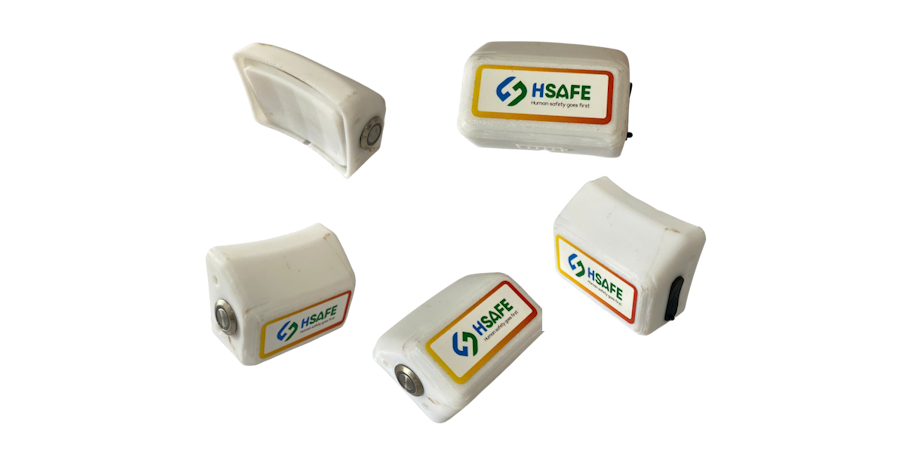

  • 1 × HSafe Tag
  • 1 × Safety Helmet (optional)
  • 1 × Type-C Charging Cable (2m)
  • 1 × Mounting Tool & Adhesive for attaching tag to helmet
  • 1 × Quick Installation & Configuration Guide

Package Dimensions:

≈ 35 × 25 × 15 cm (tag only)
≈ 40 × 30 × 20 cm (with helmet)

Package Weight:

0.2 – 0.7 kg

Installation Guide

1. Installation Location
  • Attach the tag at the rear of the helmet.
  • Clean the surface of the helmet where the tag will be attached.
  • Remove the adhesive seal on the tag and stick it onto the helmet.
  • Press firmly and hold for at least 30 seconds.
2. Important Notes
  1. The helmet surface must be clean and dry.
  2. When the helmet is worn (upright position), the tag must be perpendicular to the ground.
  3. Turn off the device before attaching the tag.
  4. After attaching, turn the device back on for use.
  5. If attached incorrectly, remove the tag and use the spare adhesive pad.

Configuration Guide

LED Status Indicators

---------

---------

---------

---------

If you have any questions, please contact us for support.
